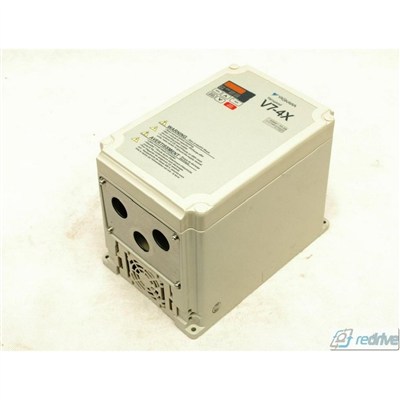

CIMR-V7CU23P74 Yaskawa / Magnetek V7-4X AC Drive 230V
CIMR-V7CU23P74 Yaskawa / Magnetek V7-4X AC Drive 230V



Alternative Views:


Manufacturer:
Yaskawa
Mfg. part number:
CIMR-V7CU23P7
Product Condition:
Refurbished
Get your quote now $0.01 ?!
We will quickly reply to you via e-mail or phone with the our best price.
1-847-886-2616

Quantity in Stock :(Contact us for stock status)
Availability: Usually Ships in 1 to 2 Days (depending on stock status), Repair or Exchange options available
Product Code: CIMR-V7CU23P7
Qty:

Description Extended Information


CIMR-V7CU23P74 Yaskawa / Magnetek V7-4X AC Drive 5HP 230V VFD

Condition: Used. Tested. Fully refurbished. 6 Months limited warranty. Repair / Exchange with same day shipping options available.
The item pictured may not be the same as the one sold, but they all are guaranteed to be in working and in good cosmetic condition. (satisfaction guarantee)

High performance Variable Frequency AC Drive / Spindle for induction motors.

Features

The V74X Drive is low cost, compact, and operable in V/f or Open Loop Vector mode. In addition to good speed regulation, open loop vector control also provides higher torque at lower speeds. The V74X is ideally suited for applications such as conveyors, grinders, centrifuges, pumps, fans, blowers, machine tools, packaging, food processing, and commercial laundry. The V74X drive with integral NEMA 4X/12 enclosure is recommended for wet and dusty indoor environments, instead of the V7 drive. For DeviceNet network applications, the V7N with embedded Device Net is recommended. All functions standard V7 drive.

V74X Drive Documentation and Manual available

Specification:

CategoryAC Drives Inverters
Part NumberCIMR-V7CU23P74 or CIMRV7CU23P7 or CIMR-V7CU23P7 or CIMR V7 CU 23P7
Rated Input200 - 240VAC (3-Phase or 1-Phase) 26Amp 50-60Hz
3-Phase Input - Rated OutputAC3PH 5.0HP 17.5Amp 0-400Hz
1-Phase Input - Rated OutputAC3PH 3.0HP 11.6Amp 0-400Hz
Temperature Range-10C to +40C (14F to 104F)
Protection levelNEMA4 ENCLOSURE Type 4X/12
VFD efficiency95%
Overload capability150% for 60 seconds
Control methodV/F, Open loop vector control
Frequency resolution0.01 Hz with digital reference, 0.06 / 60 Hz with analog reference
Digital inputs7 multi-function digital inputs
Serial interfaceRS-485/RS-422 serial communication port (up to 32 nodes)
StandardsUL, cUL, CE
Mfg NameYaskawa Electric Co.
Shipping weight18 lb
