CIMR-V7AM43P71 Yaskawa V7 GPD315 5.0HP 460V VFD
CIMR-V7AM43P71 Yaskawa V7 GPD315 5.0HP 460V VFD

Mfg. part number:
Product Condition:
Get your quote now $0.01 ?!
We will quickly reply to you via e-mail or phone with the our best price.

Quantity in Stock :(Contact us for stock status)
Availability: Usually Ships in 1 to 2 Days (depending on stock status), Repair or Exchange options available
Product Code: CIMR-V7AM43P71-R

Description Extended Information

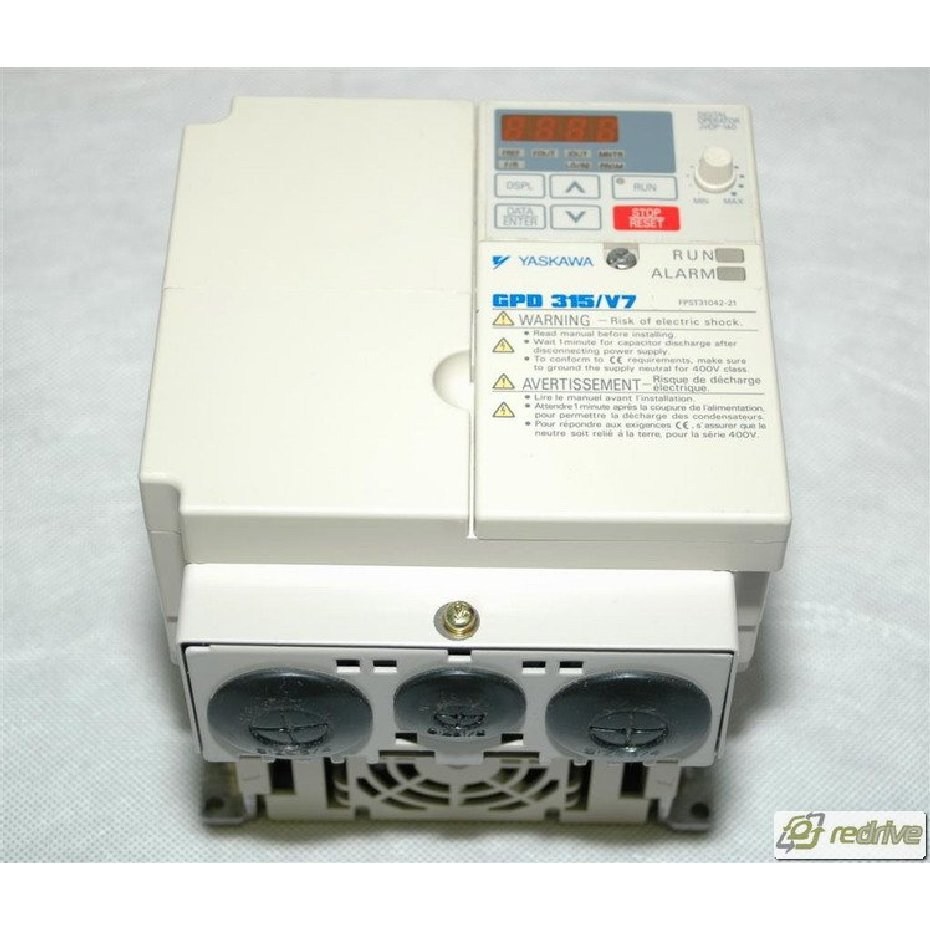

CIMR-V7AM43P71 Yaskawa / Magnetek V7 GPD315 HV AC Drive 5HP 460V VFD

Condition: Used. Tested. Fully refurbished. 6 Months limited warranty. Repair / Exchange with same day shipping options available.
The item pictured may not be the same as the one sold, but they all are guaranteed to be in working and in good cosmetic condition. (satisfaction guarantee)

High performance Variable Frequency HV AC Drive / Spindle for induction motors.


  • Earlier version of V7 Drive were named GPD 315/V7, GPD 315 or VS Mini V7.

  • High performance AC drive for induction motors, providing low motor noise and high starting torque. The V7 provides two control methods; V/f and open loop vector control for precision speed regulation applications. In addition to good speed regulation, open loop vector control also provides higher torque at lower speeds. The V7 is intended for constant torque applications, with current overload rating of 150% for 60 seconds.

  • The V7 is fully featured and compact. The digital operator provides 4-digit LED status display with a built-in analog speed potentiometer, as well as digital programming of almost 200 parameters. The digital pulse train input provides a precise frequency input, and is the perfect solution for speed / follower applications. The seven standard multi-function inputs can be programmed to allow for 17 preset speeds. The V7 also has an analog input, a multi-function output, two multi-function open collector outputs, and an analog output as standard.

  • The V7 is ideally suited for applications such as conveyors, grinders, centrifuges, pumps, fans, blowers, machine tools, packaging, food processing, and commercial laundry.

  • One of the outstanding options for the V7 is DriveWizard. This software enables upload, download, and monitoring of parameters. Another software, CASE, can add functionality to the drive by reconfiguring drive defaults, establishing presets for OEM equipment, and by eliminating peripheral controls and PLCs.

  • A RS-485 Modbus RTU communication port is standard, allowing 32 nodes on a single network. Plug-in interface option boards enable the drive to communicate with all the major networks, such as DeviceNet, Profibus-DP, and others. The option board installs directly on the drive control board via simple snap-in connectors.

V7 Drive Documentation and Manual available


CategoryAC Drives Inverters
Part NumberCIMR-V7AM43P71 or CIMR-V7U43P71 or CIMR-V7AM43P7 or CIMR V7AM 43P7
Old Part NumberGPD315-MVB009
Rated Input380 - 460VAC (3-Phase) 12.5Amp 50-60Hz
Rated OutputAC3PH 5.0HP 8.6Amp 0-400Hz
Temperature Range-10C to +40C (14F to 104F)
Protection levelIP20/NEMA1
VFD efficiency95%
Overload capability150% for 60 seconds
Control methodV/F, Open loop vector control
Frequency resolution0.01 Hz with digital reference, 0.06 / 60 Hz with analog reference
Digital inputs7 multi-function digital inputs
Serial interfaceRS-485/RS-422 serial communication port (up to 32 nodes)
StandardsUL, cUL, CE
Shipping weight9 lb
