CIMR-V7AM40P41 Saftronics / Yaskawa VFD PC740P41 Mini-Vector AC Drive 0.75 HP 3PH 460VAC V7 / GPD315 Drive
CIMR-V7AM40P41 Saftronics / Yaskawa VFD PC740P41 Mini-Vector AC Drive 0.75 HP 3PH 460VAC V7 / GPD315 Drive



Alternative Views:


Manufacturer:
Saftronics
Mfg. part number:
CIMR-V7AM40P41
Product Condition:
New
Get your quote now $0.01 ?!
We will quickly reply to you via e-mail or phone with the our best price.
1-847-886-2616

Quantity in Stock :(Contact us for stock status)
Availability: Usually Ships in 1 to 2 Days (depending on stock status)
Product Code: PC740P41
Qty:

Description Extended Information

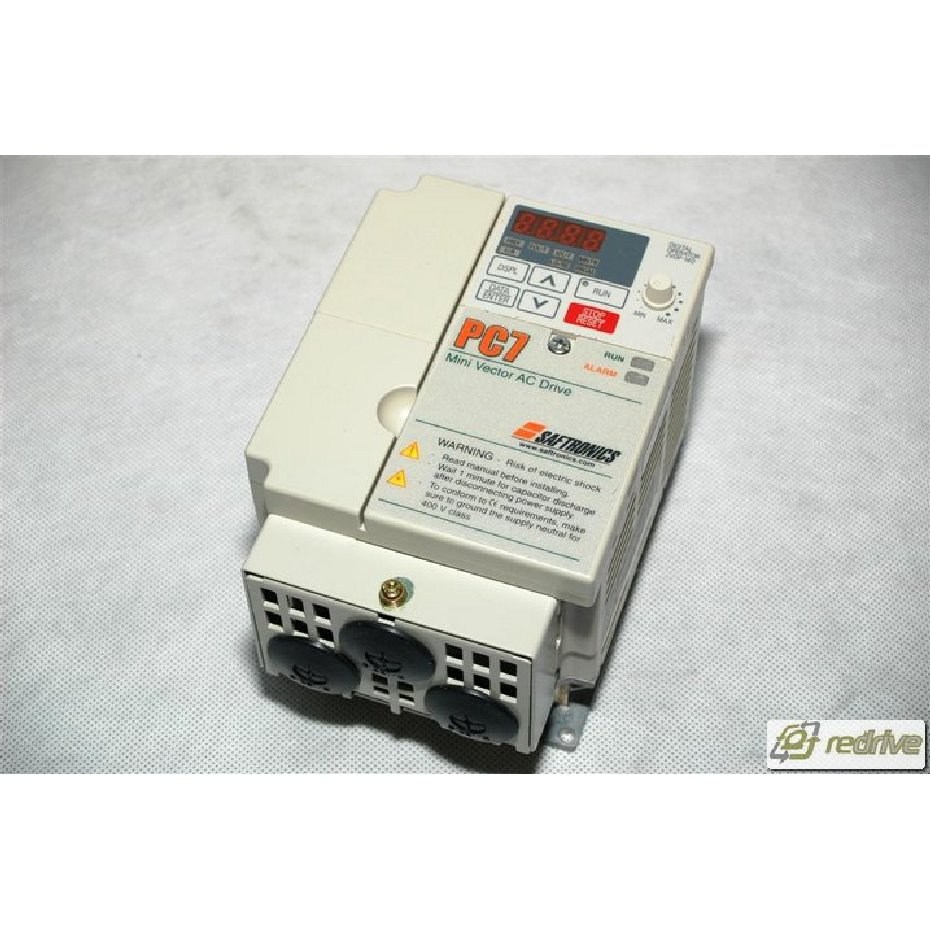

Saftronics / Yaskawa / Magnetek VFD PC740P41 Mini-Vector AC Drive 3/4HP 3PH 460VAC V7 / GPD315 Drive

Condition: New. New in factory box. Old stock. 6 Months limited warranty.

Variable Frequency AC Drive / Spindle.

Features

  • The Saftronics PC 7 is a Mini-Vector AC Drive. The PC7 is the best combination of performance, connectivity, size, and cost of ownership.
  • The lower cost of engineering and installation combined with enhanced flexibility make this an attractive low cost alternative to control wiring. The PC7 comes with RS-485 capability right out of the box.
  • Sensorless (Open Loop) Vector.
  • Programmable I/O (7 Digital Inputs, 1 Analog/Pulse Output, 3 Digital Outputs).
  • Built-In Dynamic Braking.
  • Keypad has "copy unit" function to allow convenient multiple downloads.
  • Flash ROM supports custom software via an RS-232 port.
  • Keypad can be remote wired with a simple telephone cable.
  • Cooling fan can be set to run only during inverter operation.


Specifications

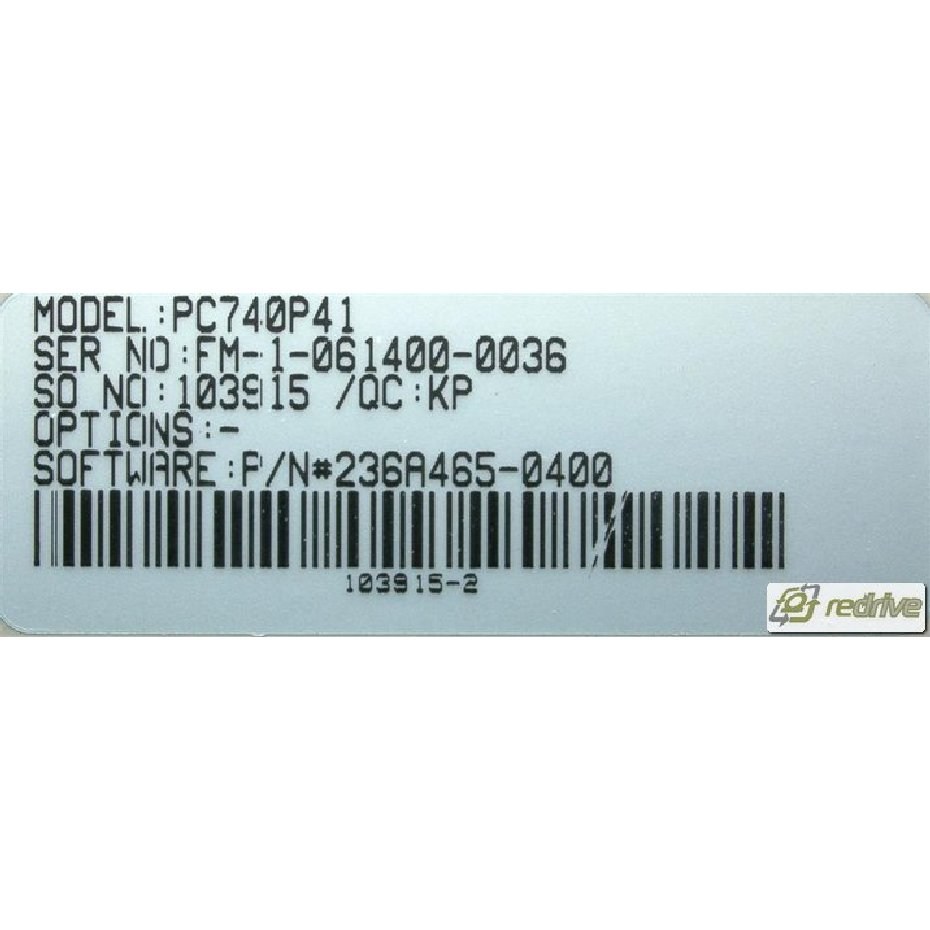

Part NumberPC740P41
Mfg nameSaftronics Inc.

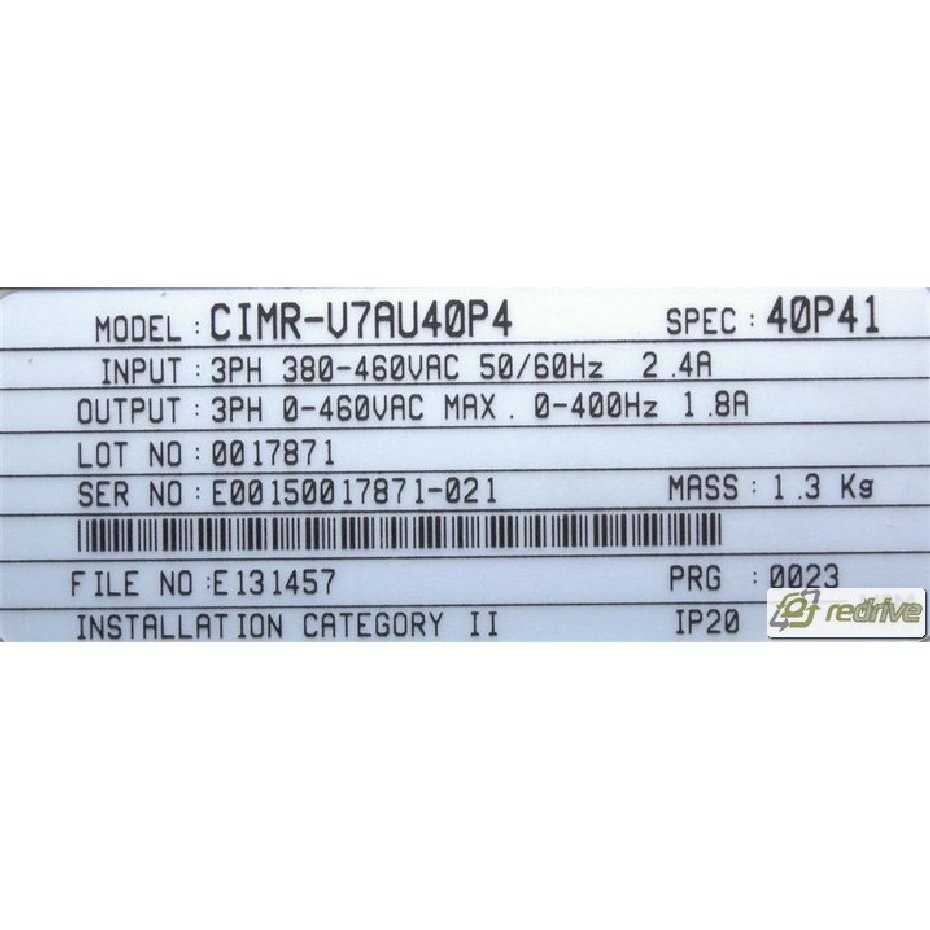

Cross reference Yaskawa Model No.CIMR-V7U40P41 or CIMR-V7AM40P41 or CIMR-V7AM40P4 or CIMR V7AM 40P4
Magnetek Part NumberGPD315-MVB002
Rated Input380 - 460VAC (3-Phase) 2.5Amp 50-60Hz
Rated OutputAC3PH 3/4HP 1.8Amp 0.1-400Hz
Temperature Range-10C to +50C (14F to 122F)
Protection levelIP20/NEMA1
VFD efficiency95%
Overload capability150% for 60 seconds
Control methodV/F, Open loop vector control
Frequency resolution0.01 Hz with digital reference, 0.06 / 60 Hz with analog reference
Digital inputs7 multi-function digital inputs
Serial interfaceRS-485 serial communication port
StandardsUL, cUL, CE
Shipping weight4 lb
