CIMR-J7AM42P20 3.0HP 460V Yaskawa GPD 305/J7 VFD
CIMR-J7AM42P20 3.0HP 460V Yaskawa GPD 305/J7 VFD



Manufacturer:
Yaskawa
Mfg. part number:
CIMR-J7AM42P20
Product Condition:
Refurbished
Get your quote now $0.01 ?!
We will quickly reply to you via e-mail or phone with the our best price.
1-847-886-2616

Quantity in Stock :(Contact us for stock status)
Availability: Usually Ships in 1 to 2 Days (depending on stock status), Repair or Exchange options available
Product Code: CIMR-J7AM42P20
Qty:

Description Extended Information

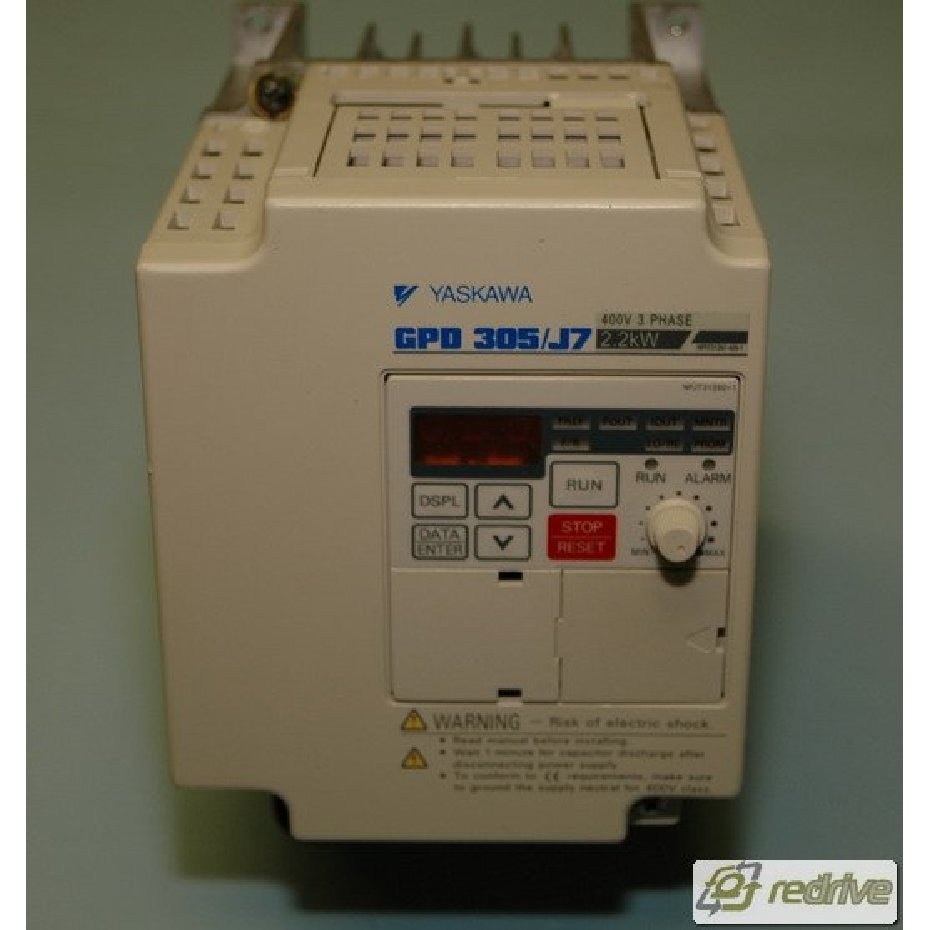

Yaskawa / Magnetek CIMR-J7AM42P20 J7 GPD 305/J7 HV AC Drive 3HP 460V VFD

Condition: Used. Tested. Fully refurbished. 6 Months limited warranty. Repair / Exchange with same day shipping options available.
The item pictured may not be the same as the one sold, but they all are guaranteed to be in working and in good cosmetic condition. (satisfaction guarantee)

General purpose Variable Frequency HV AC Drive / Spindle.

Features

  • The J7 drive is a general purpose drive for use with squirrel cage induction motors. This PWM design provides low motor noise and high starting torque. The current overload rating is 150% for 60 seconds. V/f control makes this drive suitable for most general applications.

  • The J7 is feature-packed, low cost and compact. The digital operator includes a 3-digit LED status display and an analog speed potentiometer. Digital programming covers 79 parameters suitable for many applications. The four standard multifunction inputs can be programmed to allow for 9 preset speeds. The J7 also has an analog input, a multifunction output, and an analog output as standard.

  • DriveWizard is one of the outstanding options for the drive. This software enables upload, download, and monitoring of drive parameters.

  • An optional RS-485 Modbus RTU serial communication port is available with up to 32 nodes on a single network.

  • The J7 is ideal for applications such as conveyors, grinders, centrifuges, pumps, fans and blowers used in material handling, packaging, food processing, and commercial laundry.

  • This J7 was previously named GPD 305/J7

  • J7 is an ideal choice whenever excellent performance, low cost, and small size are required.


J7 Drive Documentation and Manual available

Specification:

Part NumberCIMR-J7AM42P20 or CIMR-J7U42P20 or CIMR-J7AM42P2 or CIMR J7AM 42P2
Old Part NumberGPD305-JDB006
Rated Input380 - 460VAC (3-Phase) 8.1Amp 50-60Hz
Rated OutputAC3PH 3.0HP 5.5Amp 1.5-400Hz
Temperature Range-10C to +50C (14F to 122F)
Protection levelIP20/NEMA1
VFD efficiency95%
Overload capability150% for 60 seconds
Control methodV/F
Frequency resolution0.01 Hz with digital reference, 0.06 / 60 Hz with analog reference
Digital inputs4 multifunction digital inputs
Serial interfaceoptional
StandardsUL, cUL, CE
Shipping weight7 lb
