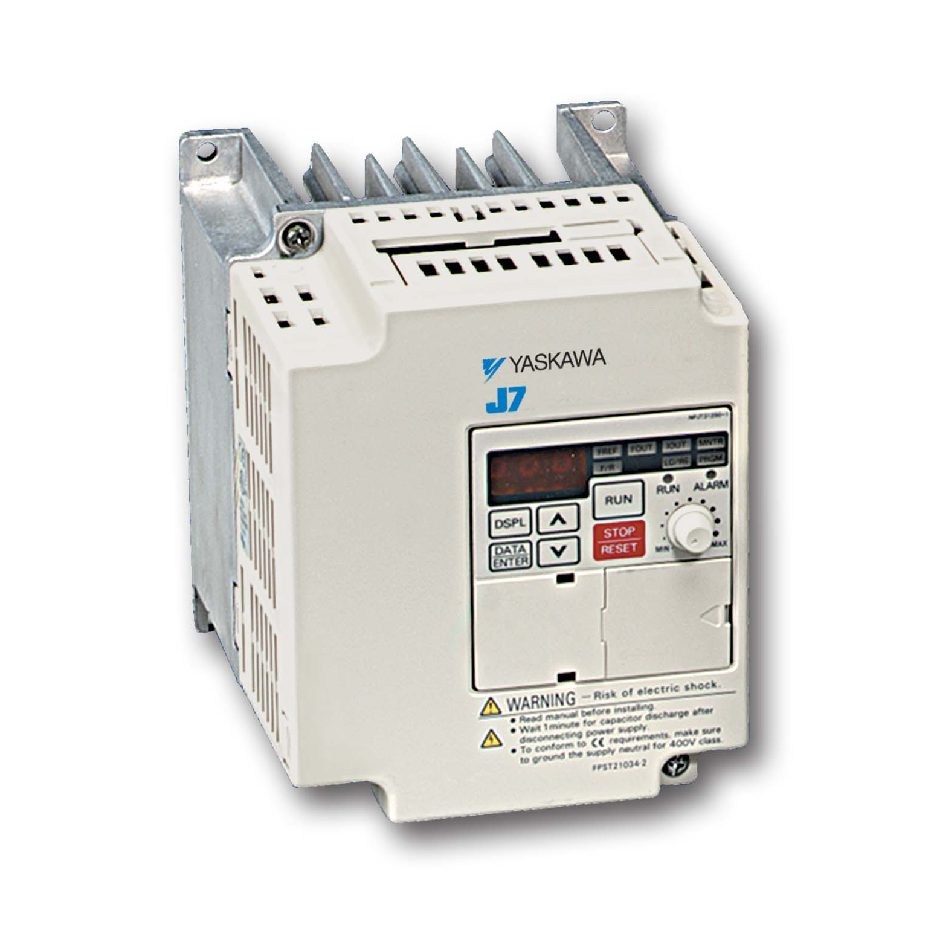

CIMR-J7AM22P20 Yaskawa J7 GPD305 AC Drive 3HP 230V VFD

Condition: New.

General purpose Variable Frequency AC Drive / Spindle.

Features

• The J7 drive is a general purpose drive for use with squirrel cage induction motors. This PWM design provides low motor noise and high starting torque. The current overload rating is 150% for 60 seconds. V/f control makes this drive suitable for most general applications.

• The J7 is feature-packed, low cost and compact. The digital operator includes a 3-digit LED status display and an analog speed potentiometer. Digital programming covers 79 parameters suitable for many applications. The four standard multifunction inputs can be programmed to allow for 9 preset speeds. The J7 also has an analog input, a multifunction output, and an analog output as standard.

• DriveWizard is one of the outstanding options for the drive. This software enables upload, download, and monitoring of drive parameters.

• An optional RS-485 Modbus RTU serial communication port is available with up to 32 nodes on a single network.

• The J7 is ideal for applications such as conveyors, grinders, centrifuges, pumps, fans and blowers used in material handling, packaging, food processing, and commercial laundry.

• This J7 was previously named GPD 305/J7

• J7 is an ideal choice whenever excellent performance, low cost, and small size are required.

J7 Drive Documentation and Manual available

Specification:
