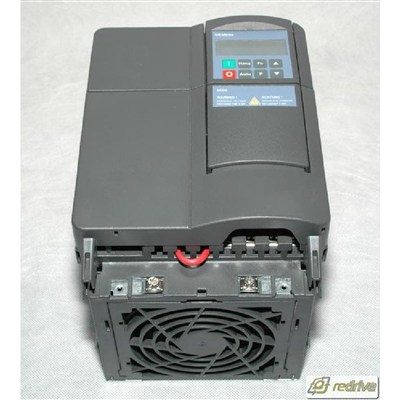

SIEMENS VFD / Spindle SED2-7.5/42X 10HP 600V HV AC
SIEMENS VFD / Spindle SED2-7.5/42X 10HP 600V HV AC



Alternative Views:


Manufacturer:
SIEMENS
Mfg. part number:
SED2-7542X
Product Condition:
Refurbished
Get your quote now $0.01 ?!
We will quickly reply to you via e-mail or phone with the our best price.
1-847-886-2616

Quantity in Stock :(Contact us for stock status)
Availability: Usually Ships in 1 to 2 Days (depending on stock status)
Product Code: SED2-7542X
Qty:

Description Extended Information


SIEMENS Variable Frequency Drive / Spindle SED2-7.5/42X 10HP 600V HV AC VFD

Condition: Used. Tested. Fully refurbished. 6 Months limited warranty. Repair / Exchange with same day shipping options available.
The item pictured may not be the same as the one sold, but they all are guaranteed to be in working and in good cosmetic condition. (satisfaction guarantee)

Variable frequency HVAC drive / spindle

From a global leader in drives technology and innovation, now comes a drive specifically configured for HVAC applications. The SED2 variable frequency drives from the Siemens HVAC Products Division. Incorporating the latest advancements in IGBT technology, the SED2 is a PWM drive packed with all the standard features expected in a drive designed for HVAC variable torque applications. Many more unique design features make this variable frequency drive truly advanced.

All the Features You Would Want From an Advanced HVAC Variable Frequency Drive

  • Built-in SBT P1 and JCI N2 (Metasys) building automation system protocols for easy network integration

  • Unique low harmonics design minimizing the need for external line reactors

  • Built-in PID for fast and accurate pressure control

  • Pump controller staging/cascading for constant pressure, constant flow applications

  • Multi-level program access

  • Belt failure detection with or without an external sensor

  • Essential service mode for critical applications requiring continuous, uninterruptible operation

  • Accepts a wide variety of digital and analog I/O types, including direct Ni 1000 sensor level inputs

  • One common interface throughout all power ranges

  • Optional Advanced Operator Panel (AOP) for uploading/downloading of parameters

  • Full form C relay contacts for digital outputs

SED2 Operation and Maintenance Manual

Specification:

Part NumberSED2-7.5/42X
Rated Input (+10% -10%)500 - 600VAC (3-Phase) 12.6Amp 47-63Hz
Rated Output10HP 11.0Amp 0-150Hz
Motor7.5kW (10Hp ; Input > 550V)
Frame sizeC
Temperature Range-10C to +40C (14F to 104F)
Protection levelIP20 (NEMA Type 1 with protective shield and gland plate installed); IP54 (NEMA Type 12)
VFD efficiency96 to 97%
Overload capability110% for 60 seconds
Control methodLinear V/f, parabolic V/f (fan curve); flux current control (FCC) low-power mode
Setpoint resolution0.01 Hz digital 0.01 Hz serial 10 bit analog
Digital inputs (sink/source)6: fully programmable and scalable isolated digital inputs, switchable
Analog inputs2: 0 to 10VDC, 0/4 to 20 mA, can also be configured as digital inputs or Ni1000 input
Serial interfaceRS-485, SBT-P1; JCI-N2, Siemens USS bus (optional Modbus, LON)
Analog outputs2: programmable (0/4 to 20 mA)
StandardsUL, cUL, CE, C-tick
Shipping weight13 lb
