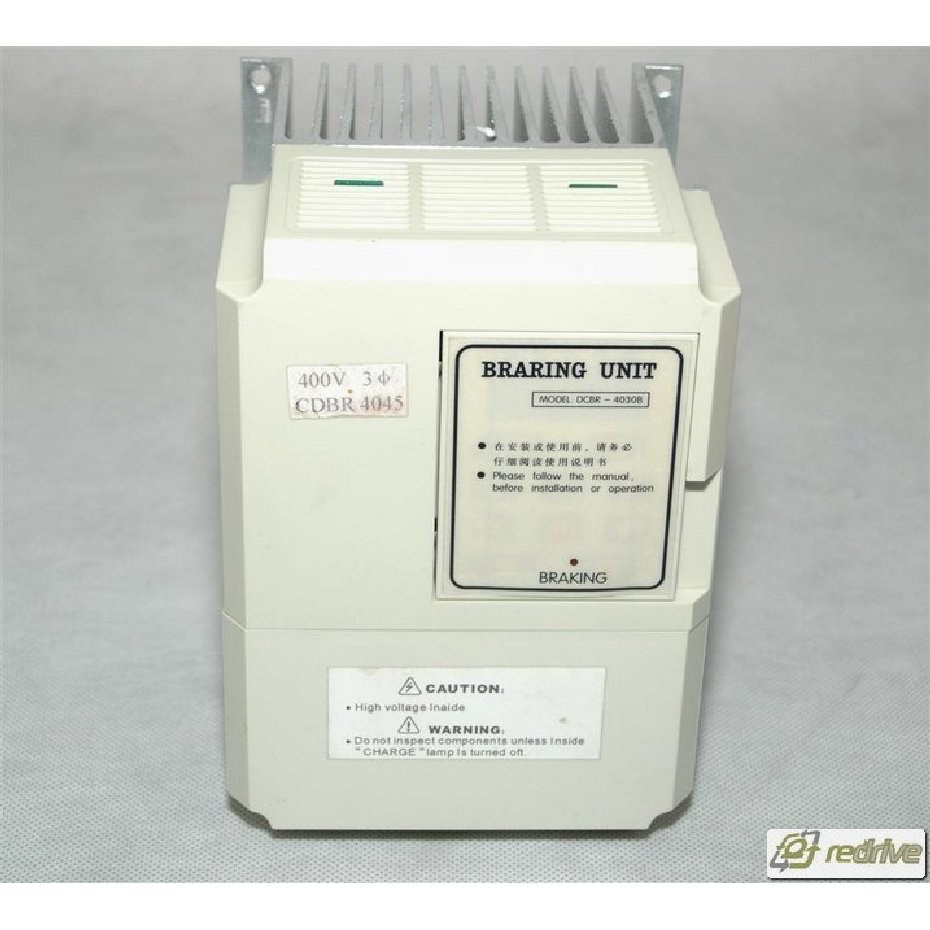

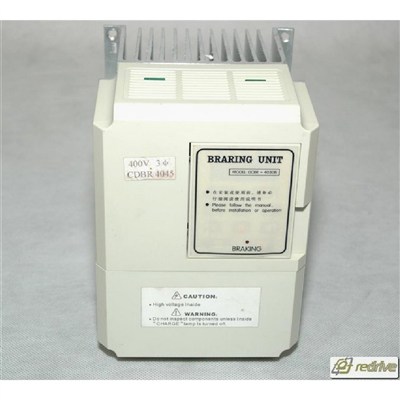

CDBR-4045B 400VAC 3PH AC CDBR Braking Unit Dynamic Braking Options for G7 Drive
CDBR-4045B 400VAC 3PH AC CDBR Braking Unit Dynamic Braking Options for G7 Drive



Alternative Views:


Manufacturer:
HC1
Mfg. part number:
CDBR-4045B-R
Product Condition:
Used
Get your quote now $0.01 ?!
We will quickly reply to you via e-mail or phone with the our best price.
1-847-886-2616

Quantity in Stock :(Contact us for stock status)
Availability: 2-4 business days Standard Repair, Expedited 1 Day Service available, Exchange option available
Product Code: CDBR-4045B-R
Qty:

Description Extended Information


CDBR-4045B 400VAC 3PH AC CDBR Braking Unit Dynamic Braking Options for G7 Drive

Condition: Used. Tested. Available only for exchange or repair Contact us for quote.

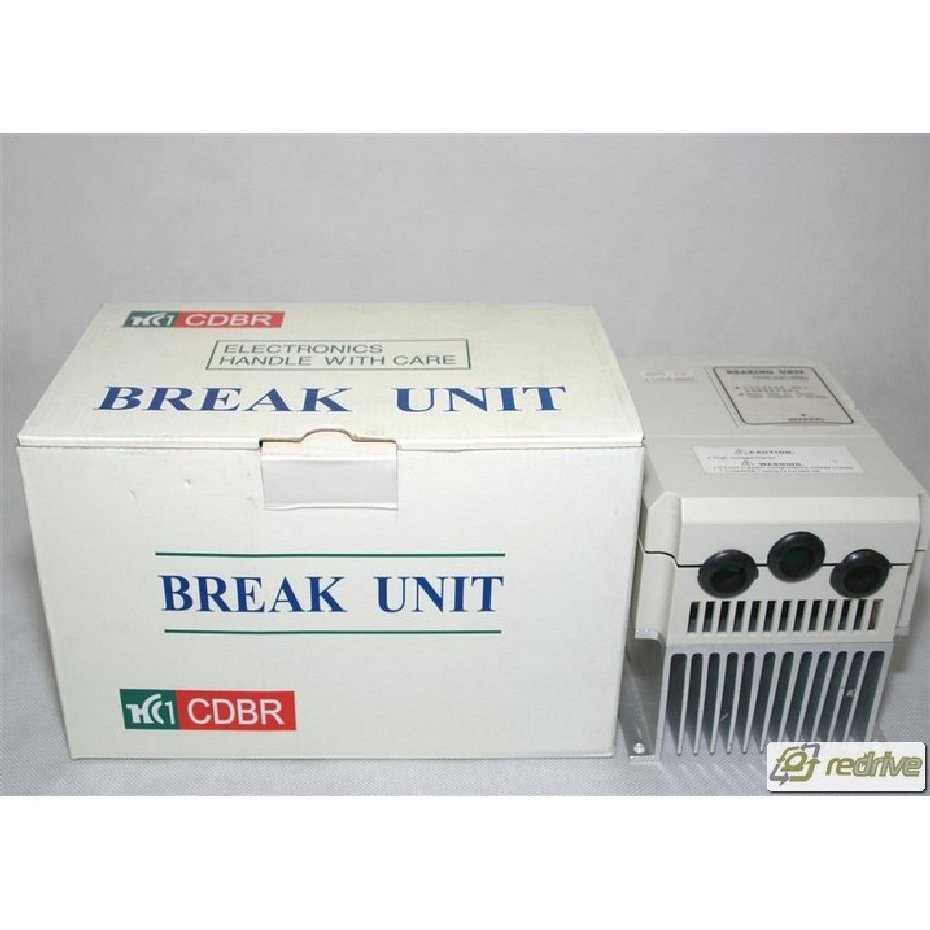

AC CDBR Break Module

Features

Dynamic Braking is used to assist an AC drive to periodically decelerate a load without overvoltage trips. It consists of at least one transistor and at least one resistor, and is sized for rated motor horsepower. The braking transistor may be included in the standard drive. The resistors are sized for a 10% duty cycle and will provide approximately 150% braking torque. Refer to each drive catalog for details and availability.

Specification:

CategoryOptions / Repair
Part NumberCDBR-4045 or CDBR4045
Applicable Motor Output60HP(45kW)
Rated Discharge Current18A
Max. Discharge Current (peak value)60A
Min. Connectable Resistance12.8ohm
Rated voltage380VAC - 460VAC
Shipping weight8 lb
