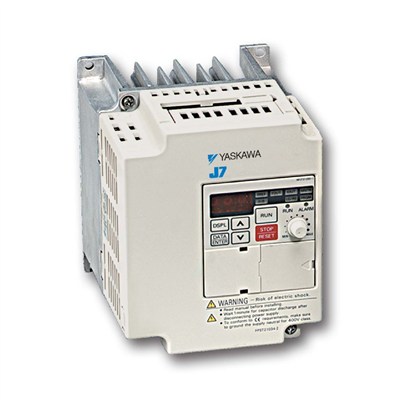

New CIMR-J7AM41P50 Yaskawa J7 GPD305 HV AC Drive 3HP 460V VFD
New CIMR-J7AM41P50 Yaskawa J7 GPD305 HV AC Drive 3HP 460V VFD



Manufacturer:
Yaskawa
Mfg. part number:
CIMR-J7AM41P50
Product Condition:
New
Get your quote now $0.01 ?!
We will quickly reply to you via e-mail or phone with the our best price.
1-847-886-2616

Quantity in Stock :(Contact us for stock status)

Availability: Usually Ships in 1 to 2 Days (depending on stock status), Repair or Exchange options available
Product Code: CIMR-J7AM41P50
Qty:

Description Extended Information

CIMR-J7AM41P50 Yaskawa J7 GPD305 HV AC Drive 3HP 460V VFD

Condition: New.

General purpose Variable Frequency HV AC Drive / Spindle.

Features

  • The J7 drive is a general purpose drive for use with squirrel cage induction motors. This PWM design provides low motor noise and high starting torque. The current overload rating is 150% for 60 seconds. V/f control makes this drive suitable for most general applications.

  • The J7 is feature-packed, low cost and compact. The digital operator includes a 3-digit LED status display and an analog speed potentiometer. Digital programming covers 79 parameters suitable for many applications. The four standard multifunction inputs can be programmed to allow for 9 preset speeds. The J7 also has an analog input, a multifunction output, and an analog output as standard.

  • DriveWizard is one of the outstanding options for the drive. This software enables upload, download, and monitoring of drive parameters.

  • An optional RS-485 Modbus RTU serial communication port is available with up to 32 nodes on a single network.

  • The J7 is ideal for applications such as conveyors, grinders, centrifuges, pumps, fans and blowers used in material handling, packaging, food processing, and commercial laundry.

  • This J7 was previously named GPD 305/J7

  • J7 is an ideal choice whenever excellent performance, low cost, and small size are required.


J7 Drive Documentation and Manual available

Specification:

CategoryAC Drives Inverters
Part NumberCIMR-J7AM41P50 or CIMR-J7U41P50 or CIMR-J7AM41P5 or CIMR J7AM 41P5
Old Part NumberGPD305-JDB005
Rated Input380 - 460VAC (3-Phase) 7.0Amp 50-60Hz
Rated OutputAC3PH 3.0HP 4.8Amp 1.5-400Hz
Temperature Range-10C to +50C (14F to 122F)
Protection levelIP20/NEMA1
VFD efficiency95%
Overload capability150% for 60 seconds
Control methodV/F
Frequency resolution0.01 Hz with digital reference, 0.06 / 60 Hz with analog reference
Digital inputs4 multifunction digital inputs
Serial interfaceoptional
StandardsUL, cUL, CE
Shipping weight6 lb
