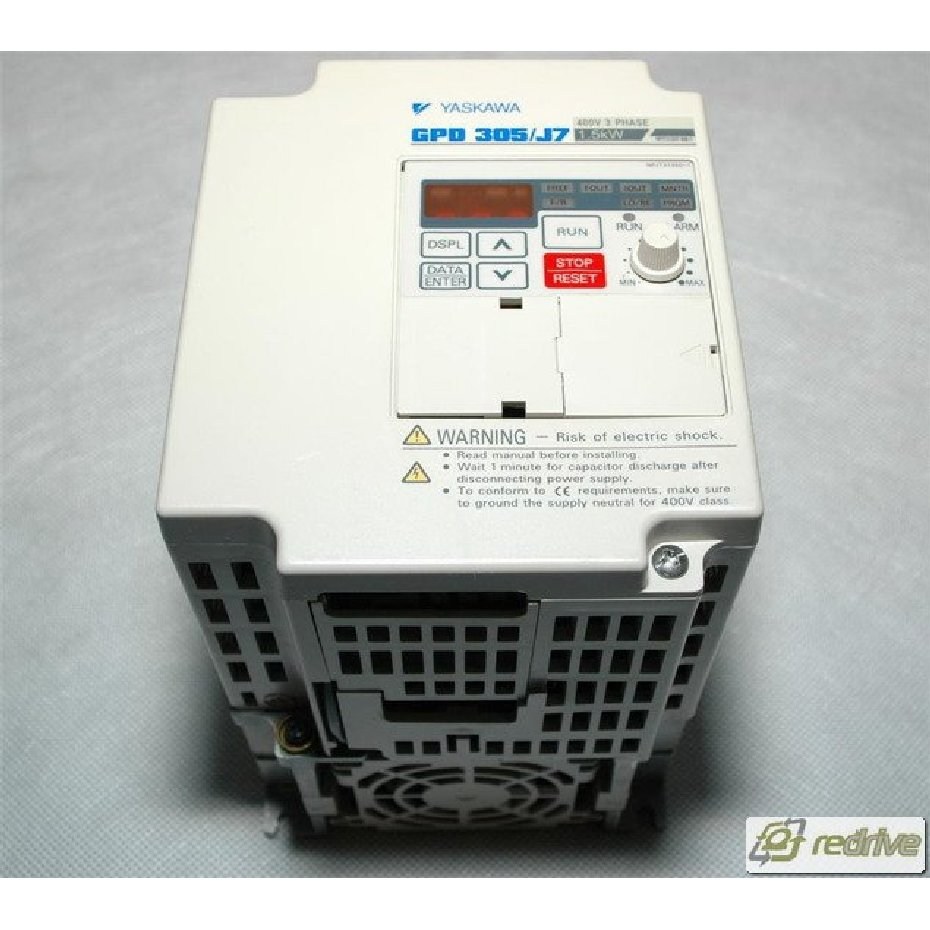

CIMR-J7AM41P50 Yaskawa J7 GPD305 HV AC Drive 3HP 460V VFD

Condition: Used. Tested. Fully refurbished. 6 Months limited warranty. Repair / Exchange with same day shipping options available.
The item pictured may not be the same as the one sold, but they all are guaranteed to be in working and in good cosmetic condition. (satisfaction guarantee)

General purpose Variable Frequency HV AC Drive / Spindle.

Features

• The J7 drive is a general purpose drive for use with squirrel cage induction motors. This PWM design provides low motor noise and high starting torque. The current overload rating is 150% for 60 seconds. V/f control makes this drive suitable for most general applications.

• The J7 is feature-packed, low cost and compact. The digital operator includes a 3-digit LED status display and an analog speed potentiometer. Digital programming covers 79 parameters suitable for many applications. The four standard multifunction inputs can be programmed to allow for 9 preset speeds. The J7 also has an analog input, a multifunction output, and an analog output as standard.

• DriveWizard is one of the outstanding options for the drive. This software enables upload, download, and monitoring of drive parameters.

• An optional RS-485 Modbus RTU serial communication port is available with up to 32 nodes on a single network.

• The J7 is ideal for applications such as conveyors, grinders, centrifuges, pumps, fans and blowers used in material handling, packaging, food processing, and commercial laundry.

• This J7 was previously named GPD 305/J7

• J7 is an ideal choice whenever excellent performance, low cost, and small size are required.

J7 Drive Documentation and Manual available

Specification:
