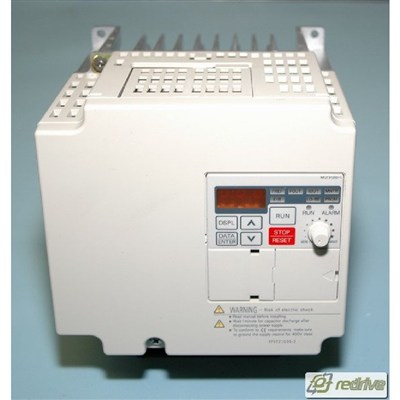

CIMR-J7AM23P70 Yaskawa 5.0HP 230V GPD305 J7 AC Drive
CIMR-J7AM23P70 Yaskawa 5.0HP 230V GPD305 J7 AC Drive



Alternative Views:


Manufacturer:
Yaskawa
Mfg. part number:
CIMR-J7AM23P70-R
Product Condition:
Refurbished
Get your quote now $0.01 ?!
We will quickly reply to you via e-mail or phone with the our best price.
1-847-886-2616

Quantity in Stock :(Contact us for stock status)

Availability: Usually Ships in 1 to 2 Days (depending on stock status), Repair or Exchange options available
Product Code: CIMR-J7AM23P70-R
Qty:

Description Extended Information


CIMR-J7AM23P70 Yaskawa / Magnetek J7 GPD305 AC Drive 5HP 230V VFD

Condition: Used. Tested. Fully refurbished. 6 Months limited warranty. Repair / Exchange with same day shipping options available.
The item pictured may not be the same as the one sold, but they all are guaranteed to be in working and in good cosmetic condition. (satisfaction guarantee)

General purpose Variable Frequency AC Drive / Spindle.

Features

  • The J7 drive is a general purpose drive for use with squirrel cage induction motors. This PWM design provides low motor noise and high starting torque. The current overload rating is 150% for 60 seconds. V/f control makes this drive suitable for most general applications.

  • The J7 is feature-packed, low cost and compact. The digital operator includes a 3-digit LED status display and an analog speed potentiometer. Digital programming covers 79 parameters suitable for many applications. The four standard multifunction inputs can be programmed to allow for 9 preset speeds. The J7 also has an analog input, a multifunction output, and an analog output as standard.

  • DriveWizard is one of the outstanding options for the drive. This software enables upload, download, and monitoring of drive parameters.

  • An optional RS-485 Modbus RTU serial communication port is available with up to 32 nodes on a single network.

  • The J7 is ideal for applications such as conveyors, grinders, centrifuges, pumps, fans and blowers used in material handling, packaging, food processing, and commercial laundry.

  • This J7 was previously named GPD 305/J7

  • J7 is an ideal choice whenever excellent performance, low cost, and small size are required.


J7 Drive Documentation and Manual available

Specification:

CategoryAC Drives Inverters
Part NumberCIMR-J7AM23P70 or CIMR-J7U23P70 or CIMR-J7AM23P7 or CIMR J7AM 23P7
Old Part NumberGPD305-JDA017
Rated Input200 - 240VAC (3-Phase or 1-Phase) 26.1Amp 50-60Hz
3-Phase Input - Rated OutputAC3PH 5.0HP 17.5Amp 1.5-400Hz
1-Phase Input - Rated OutputAC3PH 3.0HP 11.5Amp 1.5-400Hz
Temperature Range-10C to +50C (14F to 122F)
Protection levelIP20/NEMA1
VFD efficiency95%
Overload capability150% for 60 seconds
Control methodV/F
Frequency resolution0.01 Hz with digital reference, 0.06 / 60 Hz with analog reference
Digital inputs4 multifunction digital inputs
Serial interfaceoptional
StandardsUL, cUL, CE
Shipping weight9 lb
